Product Overview: JLG Drive Steer Decal (Part #1702565)

JLG Lift Swing Decal 1702565 for JLG Boom Lift 460SJ 600S 601S 800S 600A 450A 1250AJP E300A E400A...

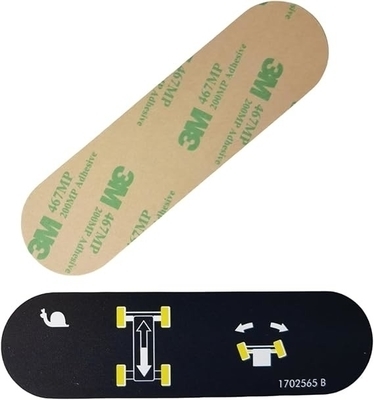

The JLG Drive Steer Decal (Part #1702565) is a critical OEM (Original Equipment Manufacturer) informational and instructional decal (sticker) designed specifically for the platform control console of various JLG boom lift models. This decal provides the operator with the essential visual instructions required to correctly operate the machine's drive and steering functions from the platform.

Key Features & Specifications

• Genuine OEM Part: This is an official JLG part, ensuring perfect fit, correct graphics, color matching, and material durability as specified by the manufacturer.

• Part Number: 1702565 (This is the unique identifier used for ordering the correct decal).

• Material: Typically made from a high-quality, durable vinyl that is:

  • Weather-Resistant: Can withstand exposure to sun, rain, and temperature variations without fading or peeling prematurely.

  • Abrasion-Resistant: Designed to resist wear from cleaning, abrasion, and frequent operator contact.

  • Adhesive Backing: Features a strong adhesive backing for a secure and permanent application to a clean, smooth surface.

• Function: Instructional Decal – It serves as a permanent reference guide for the operator.

Purpose & Importance

This decal is far more than just a sticker; it is a vital safety and operational component. Its core functions include:

1. Operator Guidance: It provides clear, visual instructions on how to operate the drive and steering controls located on the platform control box. This is especially important for:

   • New Operators: Who may be unfamiliar with the specific control layout of that JLG model.

   • Operators switching between different machines: Serves as a quick reminder of the control scheme.

2. Safety Compliance: Having clear, legible, and correct instructional decals is a fundamental requirement for:

   • OSHA Regulations: (Occupational Safety and Health Administration) mandates that equipment must have all safety and operational markings intact.

   • ANSI Standards: (American National Standards Institute) for aerial work platforms.

   • Worksite Safety Audits: A missing or damaged decal can cause a machine to fail an inspection and be taken out of service until repaired.

3. Error Prevention: By clearly labeling the functions of the drive and steering controls (e.g., which toggle switch or button controls forward/reverse, left/right), it helps prevent accidental and potentially dangerous misuse of the controls.

Compatibility & Application

This specific decal (Part #1702565) is designed for the platform control console of the following JLG articulated boom lift models:

• JLG 450A

• JLG 600A

• JLG 460SJ

• JLG 600S

• JLG 601S

• JLG 800S

It is crucial to confirm your machine's model and serial number before ordering, as using an incorrect decal can provide wrong instructions and is a safety hazard.

When to Replace This Decal

You should replace this decal if:

• The current decal is faded, peeling, or damaged and is no longer legible.

• The decal is missing entirely from the control panel.

• The machine is undergoing repairs or refurbishment, and the console is being replaced or repainted.

• The machine fails a safety inspection due to an missing or illegible instructional decal.
