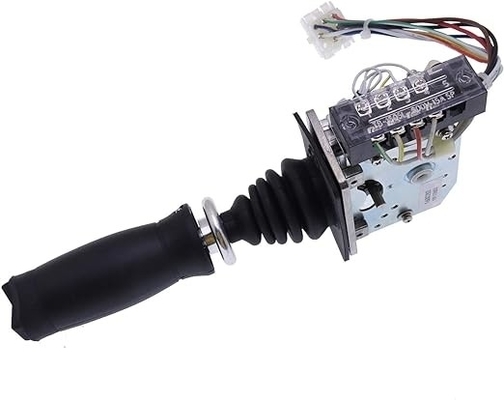

Product Overview: JLG Joystick Controller (Part #1600283)

The JLG Joystick Controller (Part #1600283) is a genuine OEM replacement component designed as the primary control interface for the platform of several JLG telescopic boom and articulating boom lifts. This robust joystick translates the operator's physical input into precise electrical signals that control the machine's hydraulic functions, enabling smooth and accurate movement of the boom and platform.

Key Features & Specifications

• Genuine OEM Part: Manufactured to JLG's exact specifications, ensuring perfect compatibility, reliability, and performance.

• Part Number: 1600283 (This is the critical identifier for ordering the correct controller).

• Type: Potentiometer-based Joystick (often referred to as an "Analog Joystick"). It typically uses three potentiometers—two for the X and Y axes of stick movement and one for the twist handle function (if applicable).

• Function: Provides proportional control, meaning the further the joystick is pushed, the faster the corresponding function (e.g., boom lift, telescope) operates.

• Design: Built to withstand the harsh conditions of construction and industrial environments, including resistance to vibration, dust, moisture, and incidental impacts.

• Connector: Features a specific multi-pin electrical connector that plugs directly into the machine's wiring harness.

Core Functions & Applications

This joystick is the main operator interface for controlling the boom movements. Its primary functions include:

1. Boom Articulation (Up/Down): Controls the raising and lowering of the boom.

2. Boom Telescope (Extend/Retract): Controls the extension and retraction of the telescopic boom sections.

3. Machine Rotation (Swing): On models with this function, it often controls the continuous rotation (swing) of the machine.

4. Auxiliary Function (Twist Grip): Many JLG joysticks of this type feature a rotating handle (twist grip) that controls a fourth function, commonly the platform leveling (auto-level) system.

Compatibility List

This part is specifically compatible with a wide range of popular JLG boom lift models, including but not limited to:

• JLG 400S

• JLG 460SJ

• JLG 600A

• JLG 600AJ

• JLG 600S

• JLG 600SJ

• JLG 660SJ

• JLG 601S

• JLG 740AJ

• JLG 800A

• JLG 800AJ

(It is always recommended to confirm compatibility using your machine's serial number before purchase.)

Why is this Part Critical?

• Operational Necessity: A faulty joystick can render the entire machine inoperable or make it unsafe to control, leading to significant project downtime.

• Safety: Precise control of boom movements is essential for safe operation around obstacles, power lines, and other personnel. A genuine OEM joystick ensures accurate and predictable response.

• Direct Replacement: This part is the solution for troubleshooting issues like:

  • Intermittent or erratic operation of boom functions.

  • Failure of one or more functions (e.g., boom goes up but not down).

  • Error codes related to control input.

  • Physical damage to the joystick handle or housing.

Who Needs This Part?

• Equipment Rental Companies: For maintaining fleet availability and minimizing downtime.

• Construction & Industrial Maintenance Teams: For repairing their owned JLG boom lifts.

• AWP (Aerial Work Platform) Service Technicians: As a essential spare part for common repairs on these JLG models.

• Owners/Operators of JLG Lifts: To ensure they can perform necessary repairs to keep equipment safe and operational.
