203010003001 Control Box Essential for Safe and Operation of Sinoboom Scissor Lifts GTJZ0608 GTJZ0808 GTJZ1008 GTJZ0812

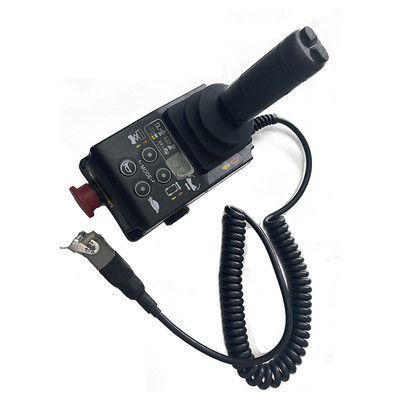

PLATFORM CONTROL BOX for Sinoboom 203010003001

The 203010003001 Control Box is a high-quality, essential component designed for Sinoboom scissor lifts, specifically models GTJZ0608, GTJZ0808, GTJZ1008, and GTJZ0812. This control box is crucial for the precise operation and safety of the scissor lifts, ensuring reliable performance in various working conditions.

Product Overview: Platform Control Box (Part #: 203010003001)

This component is the essential Platform Control Box (also known as the Upper Control Box or Operator Console) designed for a range of Sinoboom electric scissor lifts. It acts as the primary command center for the operator on the platform, integrating all critical controls and safety features necessary for safe and efficient operation.

Primary Function:
This unit houses the interface that allows the operator to precisely control the lift's driving, lifting, lowering, and steering functions, while ensuring immediate access to emergency safety controls.

Key Features & Components:

The control box is engineered to include the following key elements:

• Multi-Function Joystick: The primary control for directing the lift's movement. It typically manages:

  • Drive Direction: Forward and reverse.

  • Speed Selection: Often includes high/low speed settings.

  • Steering Control: Integrated control for smooth maneuvering.

• Lift/Lower Control Switch: A dedicated rocker or toggle switch for raising and lowering the scissor mechanism.

• Prominent Emergency Stop (E-Stop) Button: A large, red, palm-operated button that immediately halts all machine functions in case of an emergency.

• Function Selector Switches: May include switches for features like:

  • Steer Mode Selection: (If applicable) for switching between two-wheel and four-wheel steer.

  • Platform Levelling: For operation on slight slopes.

• Audible Horn Button: A mandatory safety feature to alert personnel in the work area.

• Manual Descent System (Override): A key-operated or secured mechanism to lower the platform safely in the event of a primary power loss.

• Key Switch: The main ignition key to power up the machine's control system.

• Status Indicator Lights: LEDs to provide the operator with vital information such as power-on, active fault codes, and low battery warnings.

• Robust Enclosure: Constructed from durable materials to withstand harsh job site conditions, including exposure to dust, moisture, and minor impacts.

Compatibility & Application:

• Manufacturer: Sinoboom

• Part Number: 203010003001

• Compatible Models: This control box is a critical component for the following Sinoboom scissor lift models:

  • GTJZ0608

  • GTJZ0808

  • GTJZ1008

  • GTJZ0812

• Machine Type: Electric Scissor Lifts

Purpose & Importance:

This control box is not just an interface; it is a fundamental safety and operational component. Its proper functioning is critical for:

• Operator Safety: Centralizes emergency functions and ensures intuitive, error-resistant control.

• Operational Efficiency: Enables precise control for accurate positioning, improving productivity.

• Machine Reliability: Designed to meet Sinoboom's original equipment specifications, ensuring longevity and consistent performance.

• Regulatory Compliance: Helps the machine maintain compliance with relevant machinery and safety standards.

Common Reasons for Replacement:

• Physical Damage: Cracks or breakage in the housing from impact or falling objects.

• Component Failure: Malfunctioning joystick, unresponsive switches, or faulty indicator lights.

• Electrical Issues: Internal wiring faults, connector damage, or water ingress causing electrical shorts.

• General Wear and Tear: Degradation from prolonged use in demanding environments.

Important Note: Installation and repair of this component should be carried out by a qualified service technician. Using genuine Sinoboom parts and proper installation procedures is essential for maintaining the lift's safety, warranty, and operational integrity.
