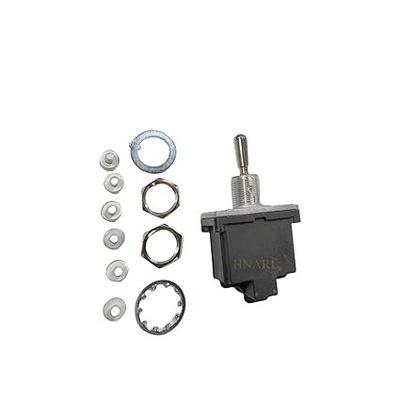

Product Overview: Genie Toggle Switch (Part #128202GT)

Genie Toggle Switch 128202GT DPDT 3P MOM for Genie Boom Lift Z-60-34 Z-45-25J S-85 S-80 S40 S45 S60 S65

The Genie Toggle Switch 128202GT is a genuine OEM (Original Equipment Manufacturer) momentary toggle switch designed specifically for use in Genie boom lifts and other aerial work platforms. This switch is a critical component in the machine's control system, acting as a reliable interface for the operator to activate specific functions.

Key Technical Specifications

• Genie Part Number: 128202GT (This is the essential identifier for ordering the correct part)

• Switch Type: Toggle Switch

• Circuit Configuration: DPDT

  • Meaning: Double Pole, Double Throw

  • Explanation: This means the switch has two separate, simultaneous circuits (Poles) and each circuit has two possible output positions (Throw). It's a complex switch capable of controlling two different functions or a single function that requires polarity reversal.

• Contact Terminology: 3-Position (3P)

  • Explanation: The switch lever has three physical positions: UP - CENTER (OFF) - DOWN. However, its operation is defined as "Momentary."

• Action Type: MOM (Momentary)

  • Explanation: A momentary switch only maintains its active state (UP or DOWN) while the operator is physically holding the lever in that position. The moment the lever is released, it springs back to the center OFF position. This is a critical safety feature to prevent unintended continuous operation.

• Terminal Type: Typically solder lug or quick-connect terminals.

Function & Application

This switch is not a simple ON/OFF switch. Its DPDT momentary design makes it ideal for controlling functions that require precise, operator-initiated movement.

Primary Function:
To provide a temporary electrical signal to the machine's control system (often the PLC) to activate a specific function only for the duration it is held.

Common Applications in Genie Boom Lifts:
This specific switch is used in the control panels of Genie boom lifts, including models like:

• Genie Z-60/34

• Genie Z-45/25J

It is commonly found controlling functions such as:

• Platform Rotation (Swing): Left and right rotation of the work platform.

• Tool Circuit Activation: Controlling auxiliary circuits for powered tools (e.g., drills, saws) from the platform.

• Specific Hydraulic Functions: Operating certain attachment movements on more complex booms.

Why is this Part Critical?

1. Safety (Momentary Action): The spring-return-to-center feature is a fundamental safety design. It ensures that any function (e.g., platform rotation) stops immediately if the operator releases the switch or becomes incapacitated.

2. Reliability: As an OEM part, it is engineered to withstand the harsh conditions of a construction site, including vibration, temperature fluctuations, and moisture.

3. Precise Control: The DPDT configuration allows for sophisticated control logic, such as reversing direction (e.g., left vs. right rotation) with a single switch.

4. Compatibility: Using the exact Genie part number (128202GT) guarantees perfect electrical and physical compatibility, ensuring the control system functions as designed and maintains safety certifications.

Symptoms of a Failing Switch

You would need to replace this switch if you experience:

• Intermittent Operation: The function works sporadically or only when the switch is held at a certain angle.

• No Operation: The specific function controlled by the switch does not work at all, while other machine functions are normal.

• Physical Damage: The toggle lever is broken, or the switch housing is cracked.

• Electrical Failure: Corrosion or internal failure prevents electrical contact.
