Product Overview: Genie Limit Switch Assembly (Part #96948 / 96948GT)

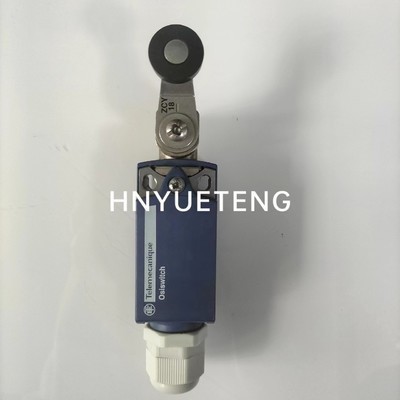

Limit Switch 96948 96948GT for Genie Scissor Lift GR-08 GR-12 GR-15 GR-20 GRC-12 S-60 S-80 S-85

The Limit Switch 96948 / 96948GT is a high-quality replacement component designed for Genie scissor lifts and boom lifts, including models GR-08, GR-12, GR-15, GR-20, GRC-12, S-60, S-80, and S-85. This limit switch is essential for ensuring safe and accurate operation of the lift, providing critical positional feedback to the control system.

The Genie Limit Switch Assembly (Part #96948 and 96948GT) is a critical safety and operational component designed for several Genie scissor lift models. This assembly is responsible for preventing the scissor lift from over-raising or exceeding its designed height, thereby protecting the machine's structure and ensuring operator safety.

Key Features & Specifications

• Genuine Genie Part: This is an official Genie OEM (Original Equipment Manufacturer) part, guaranteeing perfect fit, function, and reliability.

• Part Number Variants:

  • 96948: The standard part number.

  • 96948GT: Often denotes a kit or package that may include the switch, mounting hardware, and actuator arm, making installation easier. The "GT" suffix is common in Genie parts.

• Function: This is a normally closed (NC) mechanical limit switch. It is part of the lift's safety circuit. When the lift reaches its maximum allowed height, the switch's actuator arm is triggered, opening the circuit and cutting power to the lift function, preventing further ascent.

• Durable Construction: Built to withstand the harsh conditions of construction and industrial sites, including vibration, dust, and temperature variations.

Core Function & Importance

The primary purpose of this limit switch is overload and over-height protection. Its applications are vital for:

1. Machine Safety:

   • Preventing Structural Damage: It stops the scissor lift from raising beyond its mechanical limits, which could cause catastrophic damage to the scissor stacks, hydraulic cylinders, or other components.

   • Ensuring Stability: Over-raising a scissor lift can dangerously shift its center of gravity, increasing the risk of tipping. This switch mitigates that risk.

2. Operator Safety:

   • It prevents operators from accidentally putting the machine into an unsafe position by overriding the control system at a predetermined safe height.

3. System Integration:

   • The switch is integrated into the machine's safety interlock and control circuit. A faulty limit switch will often result in a "no-lift" condition, as the machine's controller will not detect the closed circuit needed to allow operation.

Compatibility & Models

This specific part number is designed for use in the following Genie scissor lift models:

• Genie GR-08

• Genie GR-12

• Genie GR-15

• Genie GR-20

• Genie GRC-12

It is crucial to verify your machine's model and serial number before ordering, as using an incorrect safety component can be hazardous.

Symptoms of a Failing Limit Switch

You may need to replace this assembly if you encounter the following issues:

• The scissor lift will not raise at all (the most common symptom).

• The lift stops raising before reaching its full height.

• The lift raises intermittently.

• Visible damage to the switch housing, actuator arm, or wiring is present.

• The machine fails a routine safety inspection due to an inoperative height limit function.

Why Choose a Genie OEM Limit Switch?

• Assured Safety: Safety components should never be compromised. Genie OEM parts are tested and certified to meet strict industry standards (ANSI, OSHA).

• Perfect Fit: Guaranteed to mount correctly and engage at the precise height required by the machine's design.

• Reliability: Manufactured with high-quality materials to ensure long-term performance and avoid costly downtime.

• Warranty Protection: Maintains the validity of your equipment's warranty.
