New Genie Tilt Level Sensor for Articulating Boom Lifts Z-45/25J Z-34/22 Z-40/23N Z-51/30J Z-33/18 Z-62/40 Z-30/20N Z-62/40

New Genie Tilt Cone Level Sensor Fits for Genie JLG Dingli SDLG Scissor lift GS4045 GS3246 GS1932 10RS

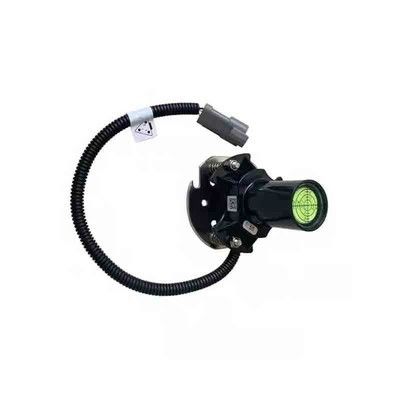

Product Overview: New Genie Tilt Level Sensor

This is a new, genuine Genie replacement Tilt Level Sensor, a critical safety component designed for a wide range of Genie articulating and telescopic boom lifts.

Primary Function:
This sensor is a vital part of the machine's Load Management System. It continuously monitors the level (angle) of the machine's chassis relative to the ground. Its primary purpose is to ensure the lift operates within safe stability parameters, preventing tip-overs by limiting boom functions if the machine is on an excessive slope.

Key Features & Specifications:

• Genuine Genie Part: Manufactured to meet original equipment specifications, ensuring perfect compatibility and reliable performance.

• Critical Safety Component: Directly responsible for operator and machine safety by enabling the load management system.

• Tilt Angle Measurement: Precisely detects the chassis inclination and sends this data to the machine's central computer.

• System Integration: When the machine is on a slope exceeding its rated capacity, the sensor signals the control system to restrict certain functions, such as boom extension or lifting, while typically allowing drive and boom lowering for recovery.

• Robust Design: Engineered to withstand the harsh conditions of construction sites, including vibration, temperature variations, and moisture.

• Plug-and-Play Installation: Designed as a direct replacement for the original sensor, with the correct connectors for easy installation (professional installation is still highly recommended).

Compatibility & Application:

This specific sensor is compatible with a key series of Genie articulating boom lifts, including the following popular models:

• Genie Z-33/18

• Genie Z-30/20N

• Genie Z-34/22

• Genie Z-40/23N

• Genie Z-45/25J

• Genie Z-51/30J

• Genie Z-62/40

Machine Type: Articulating and Telescopic Boom Lifts

Purpose & Importance:

The Tilt Level Sensor is indispensable for:

• Preventing Tip-Overs: It is a fundamental element in preventing the machine from operating unsafely on slopes.

• Ensuring OSHA & ANSI Compliance: Keeps the machine compliant with industry safety standards that require functional load sensing systems.

• Machine Protection: Helps protect the machine from structural stress and potential damage caused by unstable operations.

• Operator Confidence: Allows operators to work with confidence, knowing the machine's safety systems are active and functional.

Common Reasons for Replacement:

• Fault Codes: The display of error codes related to the tilt sensor or load management system (e.g., "Tilt Sensor Fault," "LMI Fault").

• Malfunctioning Load Moment System: The machine incorrectly limits functions on level ground or fails to limit functions on a slope.

• Intermittent Operation: Boom functions cut in and out unpredictably.

• Physical Damage: Damage from impact, debris, or environmental exposure.

• Electrical Failure: Internal failure of the sensor component.

Critical Note: The Load Management System, including the tilt sensor, is a critical safety system. Replacement, calibration, and testing must be performed by a certified Genie service technician. Improper installation or calibration can lead to machine failure, creating a serious safety hazard.
